ACEIRMC 2sets 915MHZ ESP32 Lora V3 WiFi+BLE Development Board SX1262 Type-C Lora Kit 0.96inch OLED Display ESP32-S3 Dual-core with Protective Case Compatible with Arduino NodeMCU

Features:- Microprocessor: ESP32-S3FN8 (Xtensa (R) 32-bit LX7 dual-core processor, five-stage pipeline rack Structure, frequency up to 240 MHz).- SX1262 LoRa node chip.- Type-C USB interface with a complete voltage regulator, ESD protection, short circuit protection, RF shielding, and other protection measures.- Onboard SH1.25-2 battery interface, integrated lithium battery management system (charge and discharge management, overcharge protection, battery power detection, USB / battery power automatic switching).- Integrated WiFi, LoRa, Bluetooth three network connections, onboard Wi-Fi, Bluetooth dedicated 2.4GHz metal spring antenna, reserved IPEX (U.FL) interface for LoRa use.- Onboard 0.96-inch 128x64 dot matrix OLED display can be used to display debugging information, battery power, and other information.- Integrated CP2102 USB to serial port chip, convenient for program downloading, and debugging information printing.- Support the Arduino development environment.- This is a standard LoRaWAN protocol that can communicate with any LoRa gateway running the LoRaWAN protocol. To make this code run, a unique license is needed.- With good RF circuit design and low-power design.LoRa Antenna 868-915mhz 2dBi built-in copper tube spring antennaFrequency range: 868MHz-915MHzGain: 2dB; VSWR: ≤2.0Input impedance: 50ΩPolarization: verticalLightning Protection: DC GroundWire Spec: RF1.13Wire length: 10CMIput connector type: IPEX-1Antenna weight: 10gOpenrating temperature: -40℃~85℃Package Includes:2 X ESP32 Lora V3 development board2 X LoRa Antenna 868-915mhz2 X JST 1.25mm-2P Connector2.54 pin (no welding)2 X Protective Case

• WiFi LoRa 32 is a classic IoT dev-board. The newly launched V3 version retains Wi-Fi, BLE, LoRa, OLED display, and other functions
• Upgraded V3 version has better impedance matching of RF circuits
• The new version V3 features the same pin sequence as the V2 version, and retains Wi-Fi, BLE, LoRa, OLED display, and other features. It is the best choice for developers of smart cities, farms, homes, industrial controls, house security, wireless meter reading and the Internet of Things. With good RF circuit design and low power consumption design.

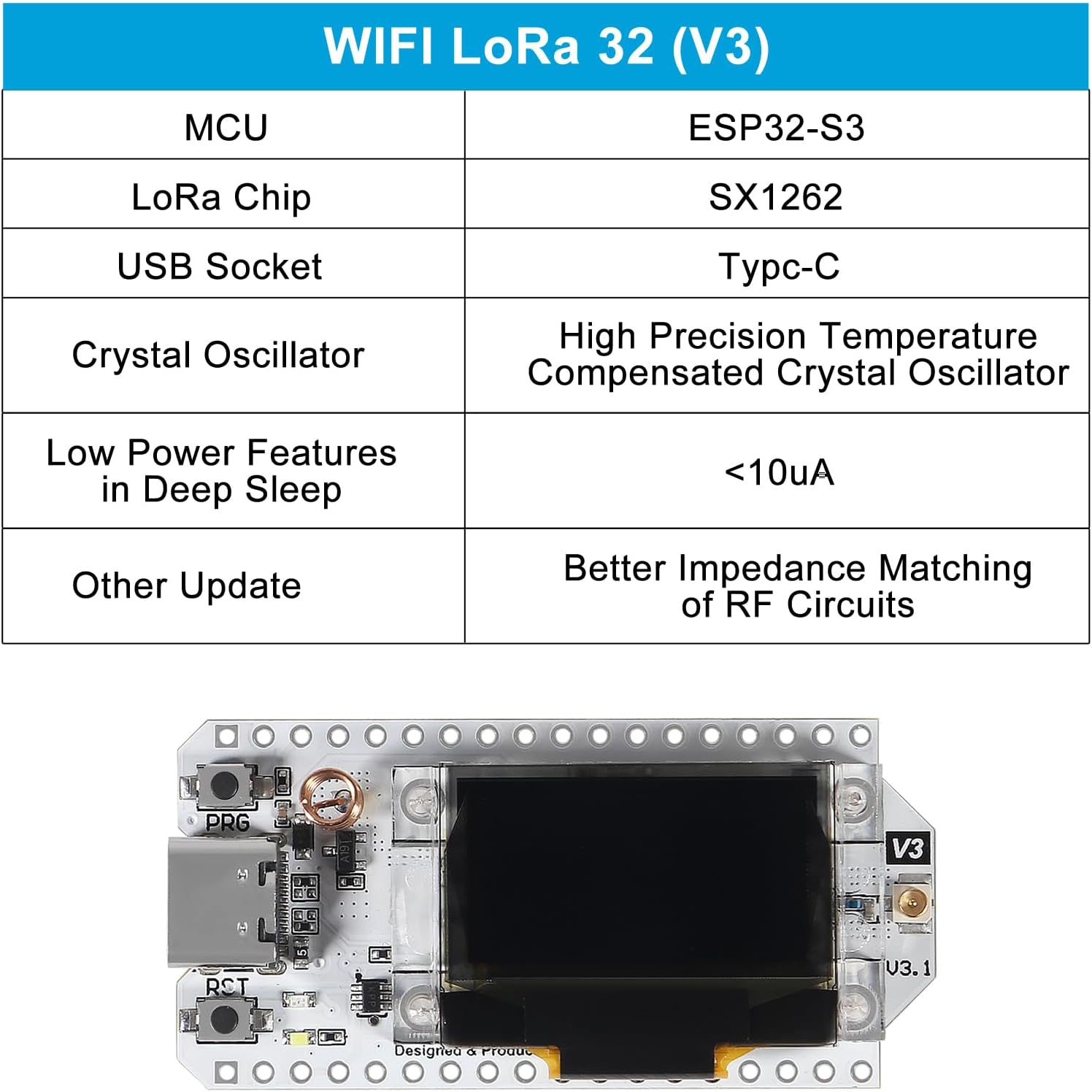

• MCU: ESP32-S3FN8 (V2 is ESP32-D0WDQ6), LoRa Chip: SX1262(V2 is SX1276/8), USB Socket: Type-C(V2 is Micro-USB)
• LoRa Chip: SX1262； USB Socket: Type-C
